NOTE: Before you start this procedure, you will need to have defined the location in your process where the new eChecksheet will be placed using Navigation Builder.
- Access Navigation Builder.
- Select Product > Area > Station > Plan where you want to create a new checksheet.
- See any existing checksheets.

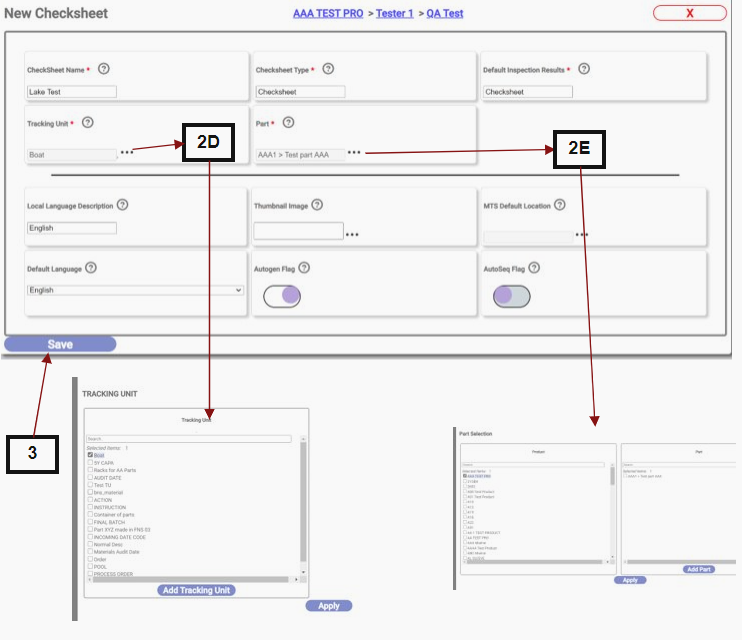

2. Click "plus" to create new checksheet, see the image below.
A. Checksheet Name : Enter a name for the checksheet.
B. Checksheet Type: Client-specific grouping.
C. Default Inspection Results: Enter “Checksheet”.
D. Tracking Unit: select or create (using …) a tracking unit that applies to the checksheet.
E. Part: Select or create (using …) a part assigned to the checksheet.
F. Local Language Description: local language, e.g. Spanish.
G. Thumbnail Image: Select an image with … that can be shown at the top of checksheet.
H. MTS Default Location: Material storage location.
I. Default Language: English.
J. Autogen Flag: when set, automatically generates the product serial number on entry to the checksheet based on the tracking unit mask.
K. Autoseq Flag: When set, it provides ability to trackout to the next product serial number in sequence based on tracking unit mask.
3. Click Save to create the checksheet and enter into eChecksheet Edit mode.
