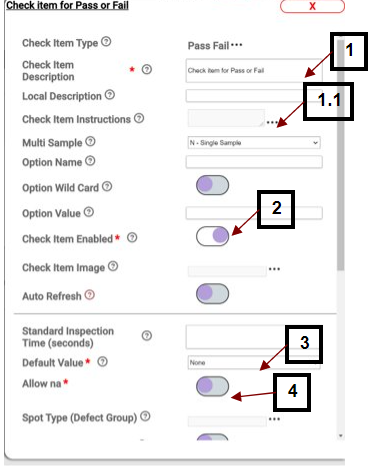

Select Pass Fail type check item.
- Required Attributes for Pass Fail.
1. Give a short inspection description.
- If required for longer description or different language, use Local Description.
1.1 Check item Instructions.
- See slide explaining this item.
2. Set Check Item Enabled to ON, if turned off item will not be displayed during inspection.
3. Set Default Value, OK or None.

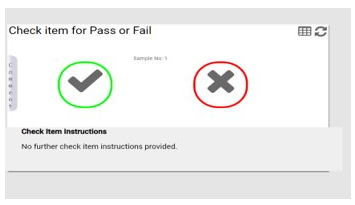

- OK, on checksheet load, item will appear green as OK.
- None – on checksheet load, item will appear as blank ready for user to Pass or Fail.
4. Allow na.
- Turn this option on, if item is not applicable for some units.

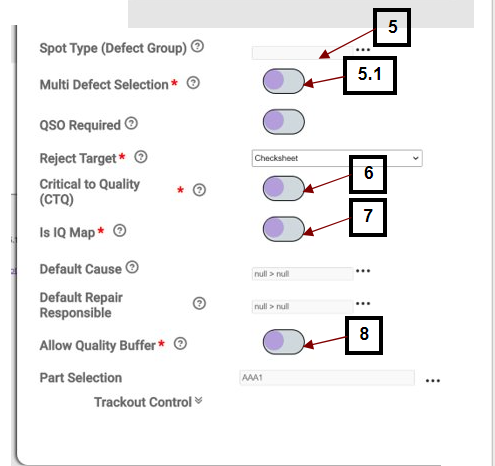

5. Spot Type (Defect Group).
- Select this option if item allows defects code assignment.
5.1 Multi Defect Selection.
- When selected, user able to select multiple defects per item.
6. Critical to Quality (CTQ).
- Use this option.
7. Is IQ Map.
- Set this if the item is Visual Inspection, you will then need to register and assign the drawing.
8. Allow Quality Buffer.
- Item defect can be set to multiple units as means of quality containment.

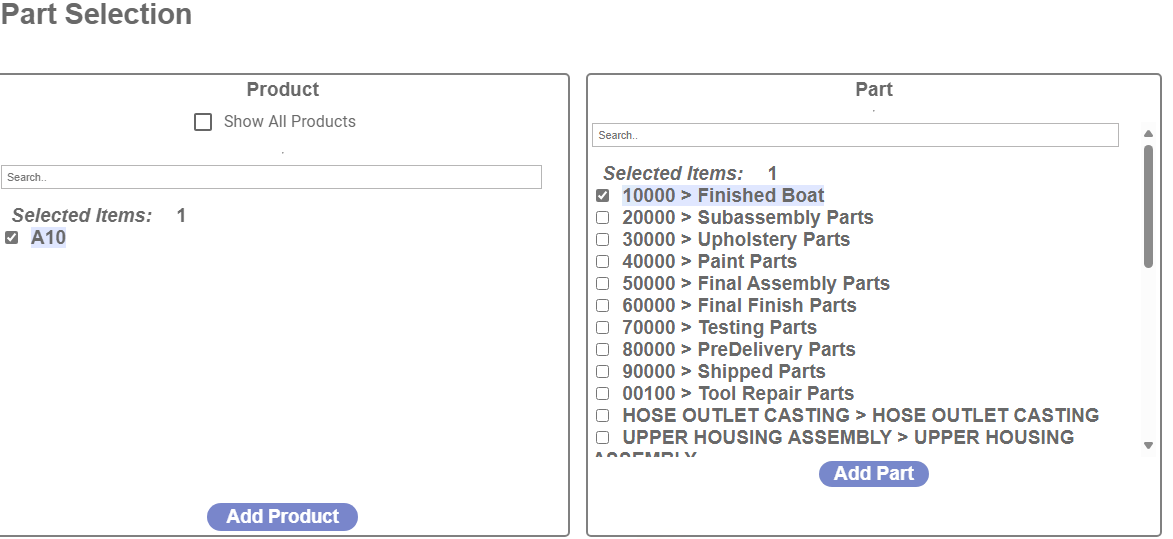

9. Part Selection.
- The list is restricted to only the part of the product the checksheet belongs to, but you may click the show all button to see parts from other products.
