This option allows you to create a new checksheet and copy from the source checksheet.

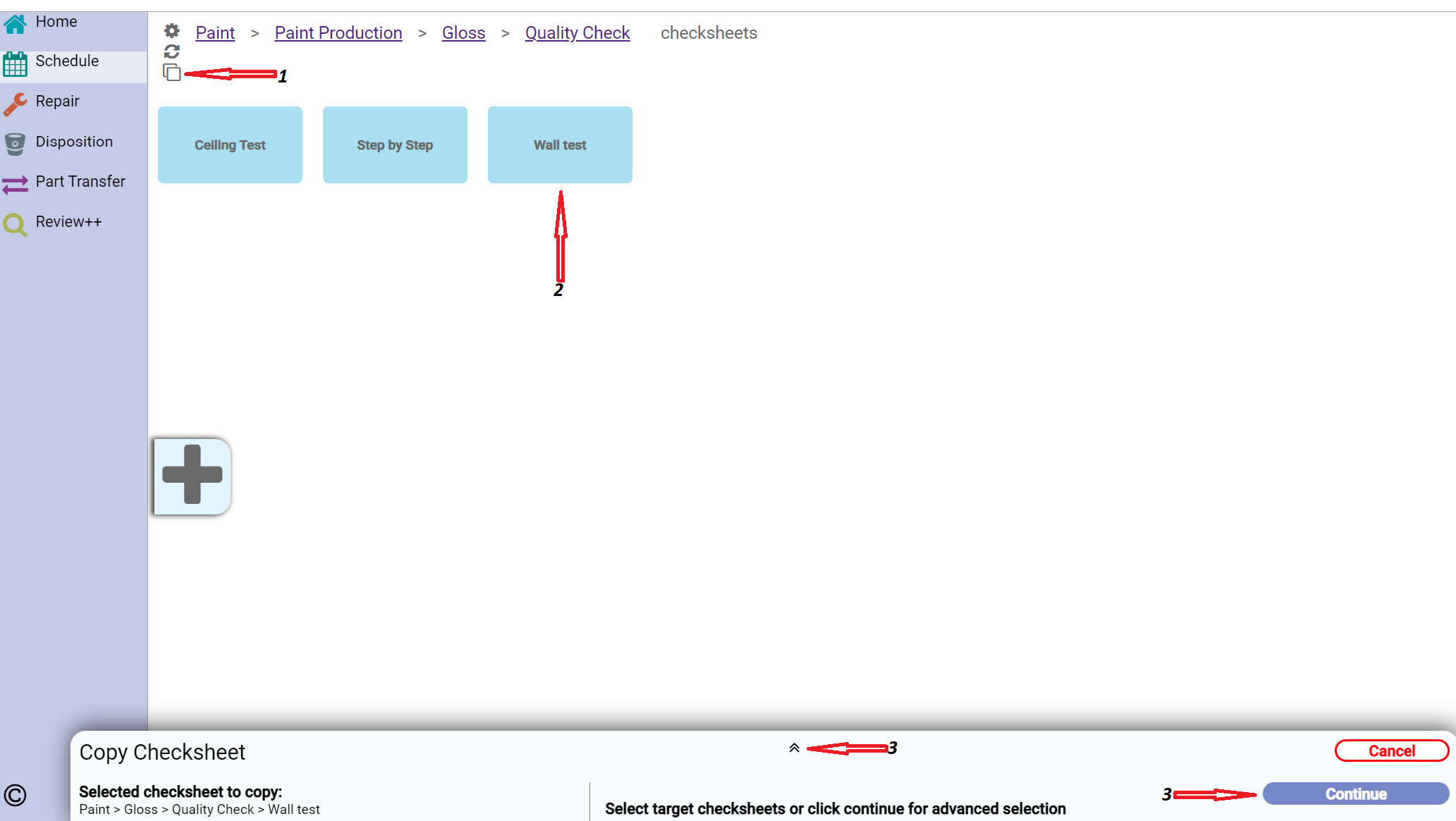

Select the product > Area > Station > Plan of the checksheet you want as your source.
- Click on copy checksheet symbol.
-
Select checksheet to copy.
-
Select the pop up arrow or continue.

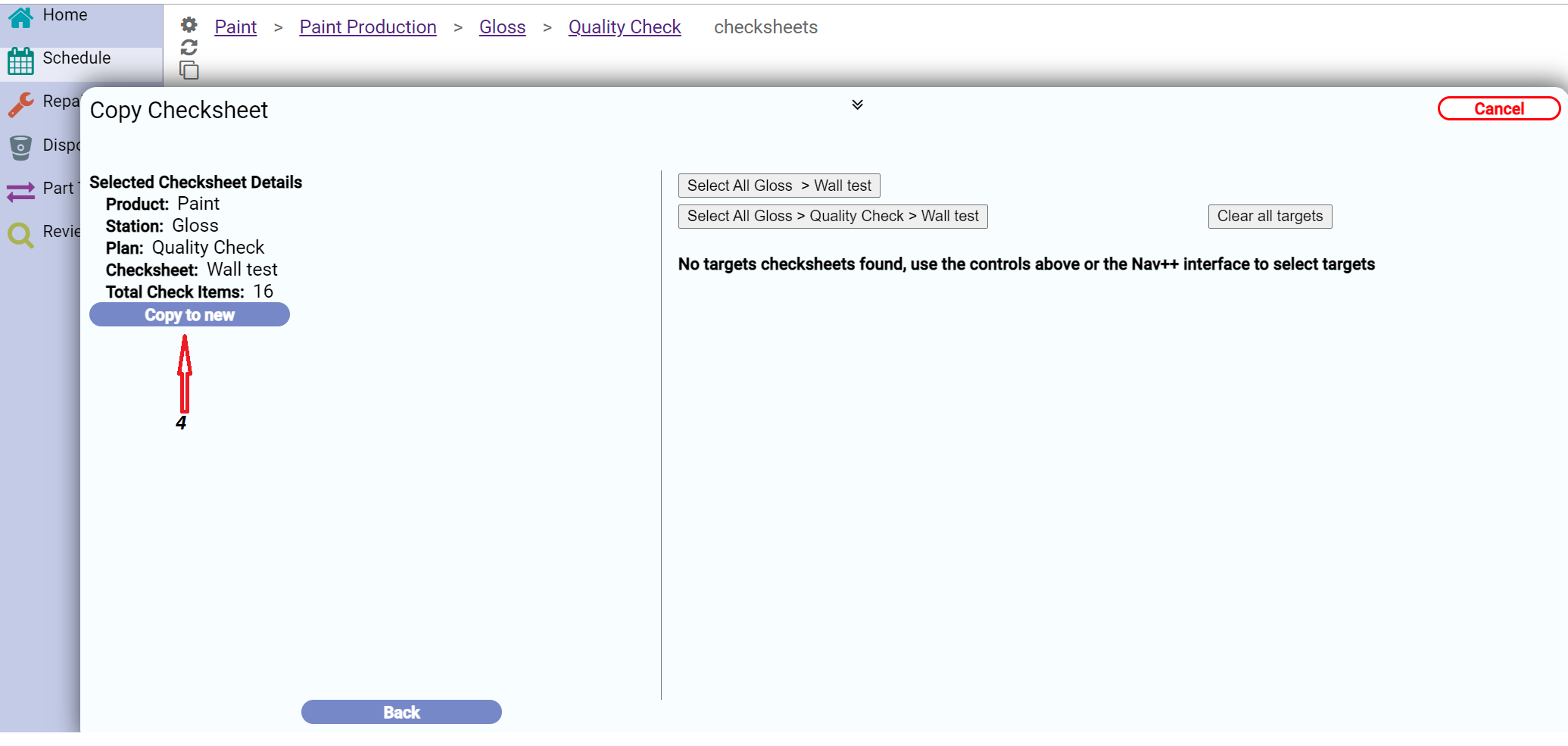

4. Click on copy to new to pop up the target breadcrumbs and Checksheet.

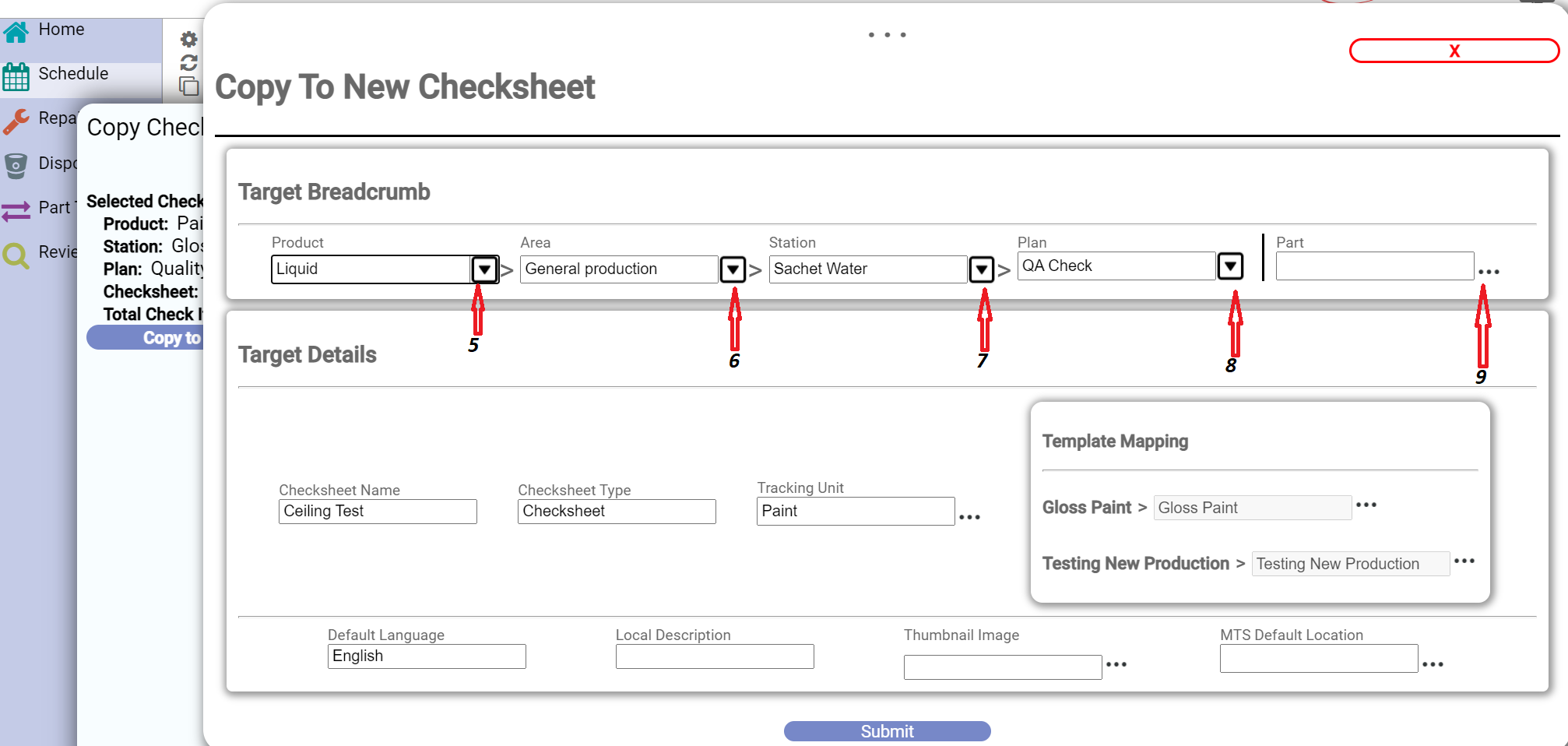

Fill in the target breadcrumbs with the checksheet you want as your destination.
5. Click on the product drop down arrow to chose your destination product.
6. Click on the area drop down arrow to chose your destination area.
7. Click on the station drop down arrow to chose your destination station.
8. Click on the plan drop down arrow to chose your destination plan.
9. Click on the plan three dots to select the part.

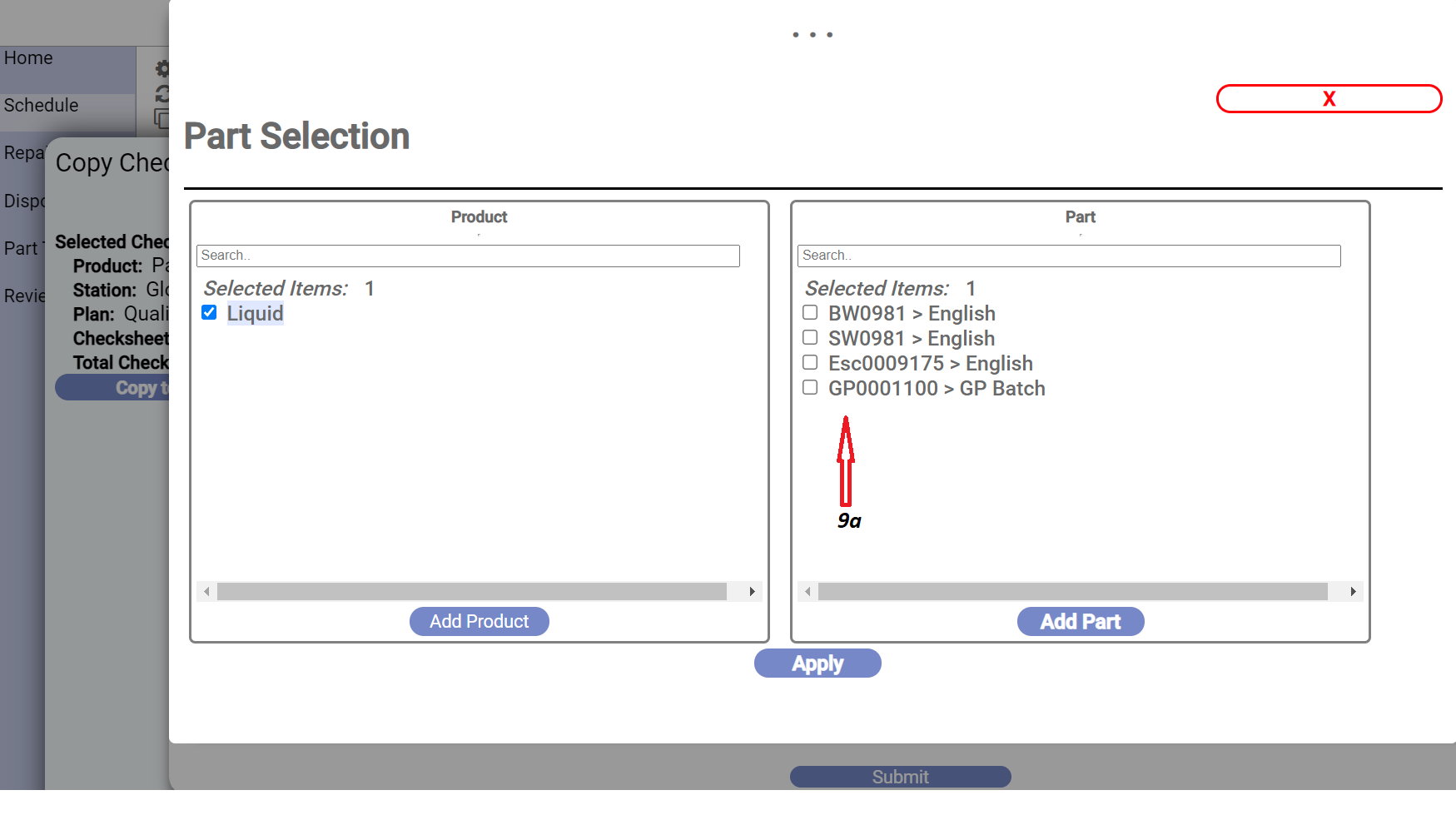

9a. Select the part as needed. Then click on apply.
Fill other fields as needed then, click on "Submit" to copy to new checksheet.
